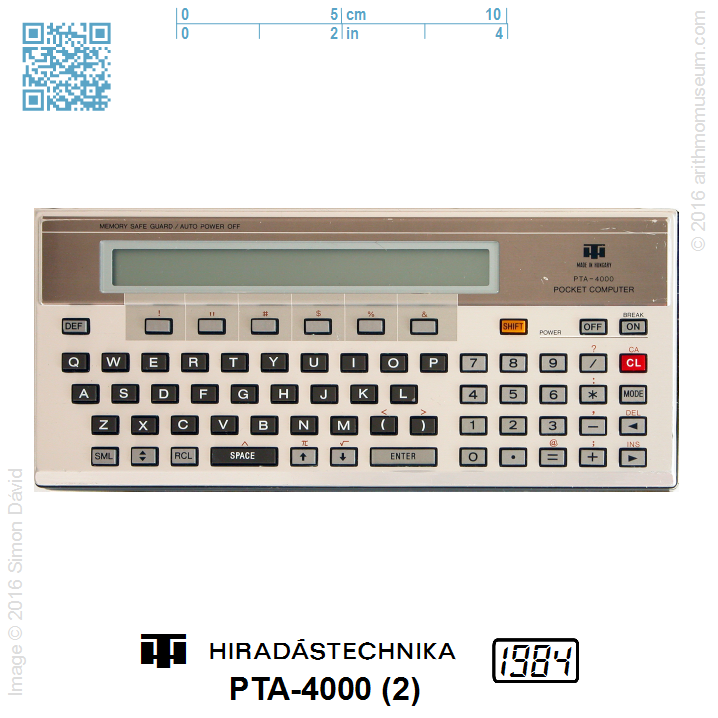

Híradástechnika PTA-4000 (2)

Brief History
Híradástechnika Szövetkezet had been assembled some programmable calculators and searched for a more powerful one to produce that in Hungary. A licence agreement was made between the HT and Sharp Corporation, so the production of the famous PC-1500 Pocket Computer was started in 1983. The hungarian version manufactured in two designs: the earlier has the original Sharp markings with the model number overprinted with 'PTA-4000', the later (1984) version has a new front panel with the Híradástechnika logo. The interiors were the same. The PTA-4000 and the printer-cassette interface unit named KA-160 (originally CE-150) became a success - some corporations and institutes were not able to purchase "real" computers other than this pocket computer - but its RAM capacity was not enough for some applications. Sharp's memory expansion modules CE-151, CE-155, CE-161 were re-branded as HT MM-4, MM-8 and MM-16 with capacities 4 kB, 8 kB and 16 kB but from 1985, a custom PCB was developed and built inside the unit which have increased RAM capacity from 3.5 kB to 19.5 kB. This model was the PTA-4000+16, which lacked the memory expansion port.
Manufacturer:Híradástechnika Szövetkezet (Hungary)
OEM:Sharp Corporation https://www.omegaresearch.co.uk/ (Japan)
OEM model:PC-1500
Mfg. date:1984
Size:19,5×8,5×2,5 cm
Weight (ready for operate):n.a.
CPU:SHARP LH5801
RAM:3.5 kB SRAM
max. 128 kB
ROM:16 kB, with the following programs:
BASIC
Programming:PC-1500 BASIC
Display:dot-matrix LCD (156×7)
Keyboard:QWERTY English
Power supply:4×AA-type batteries
E-09D adaptor

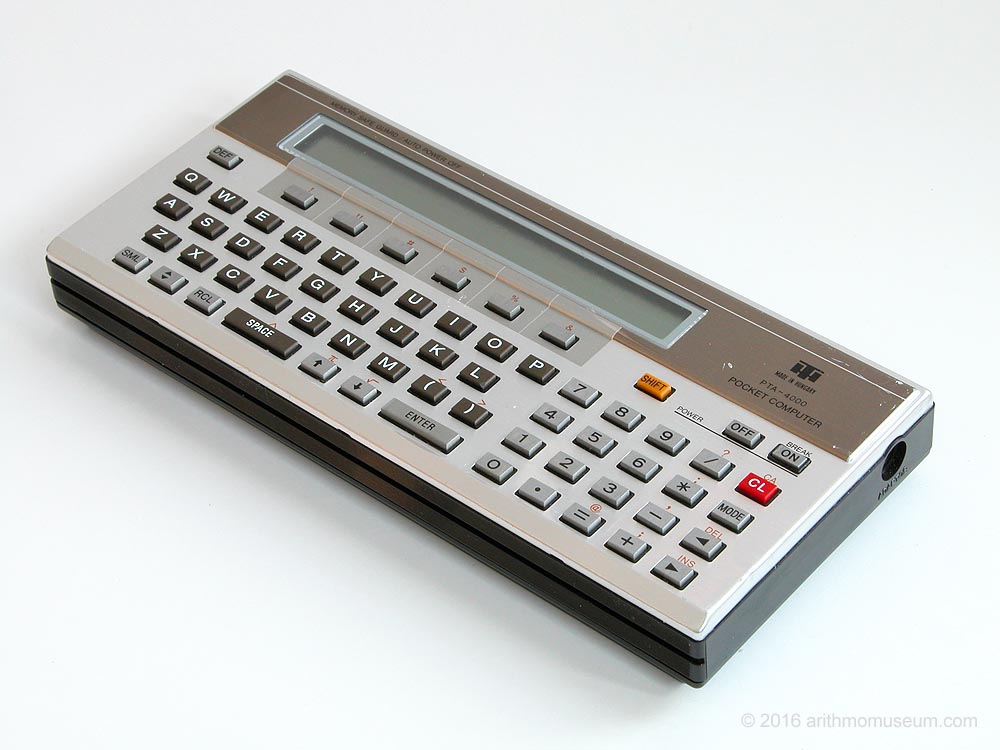

Second series of PTA-4000

Inside of a first series PTA-4000

Inside of a first series PTA-4000 with the memory expansion slot (the black connector at the middle)
