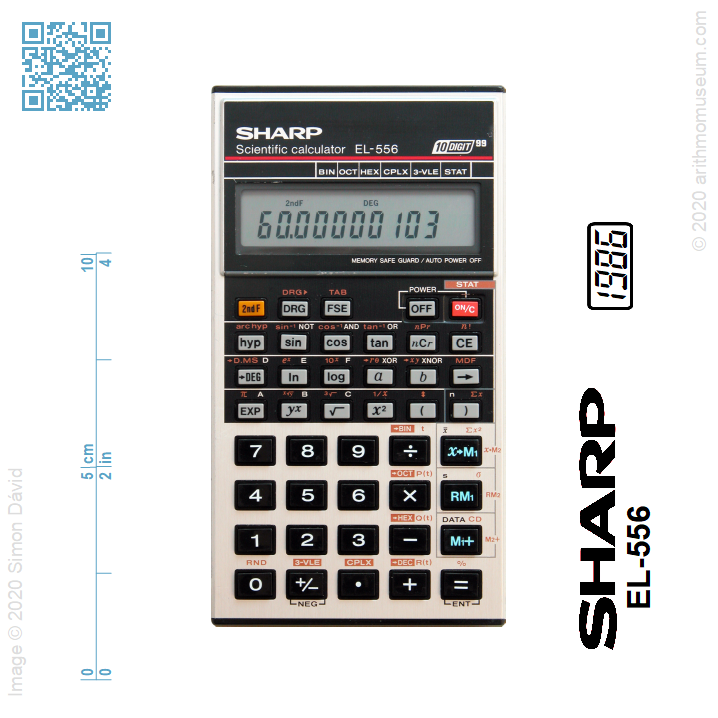

Sharp EL-556
Brief History
The new member of the Sharp’s EL-506 family was introduced in 1986. The EL-506A and its equivalent, the EL-556 had 10 + 2-digit capacity, two independent memory registers, engineering display mode, and was capable of combinatorial calculations, logical operations, and can solve 3-variable equations. In its design, the same process can be seen as for its predecessor, the EL-506P: first it was made with a flexible PCB and later with a specially packaged chip.
| Manufacturer: | Sharp Corporation (Japan) |
| Mfg. date: | 1986-87 |
| Size: | 6,9×12,7×0,9 cm |
| Weight (ready for operate): | 73 g |
| Type: | scientific |
| Capacity: | 10+2 digits (input/display) 12+2 digits (internal precision) |
| Operating logic: | algebraic with precedence |
| CPU: | Toshiba SC7893 |
| Registers: | 2 standard (with saving the pending operation) 1 constant (with saving the pending operation) 15 bracket (with saving the pending operation) 2 memory (with aritmetic) |
| Features: | %calculation with percent +/-change sign (direct entry of negative numbers) RVexchange registers (X-Y) Ffloating-point notation Fixfixed-point notation: the listed decimals can be chosen (0-9) Sciscientific (exponential) notation Engengineering notation BSbackspace (right-shift) function Sqrsquare root x2square pivalue of pi (3.1415..) can be recalled 1/xreciprocal trigtrigonometrical functions (sin, cos, tan and inverses: arcsin, arccos, arctan) hyphyperbolic functions (sinh, cosh, tanh and inverses: ar sinh, ar cosh, ar tanh) DMS-DDconversion of decimal and sexagesimal numbers logexponential and logarithmical functions (10- and e-base) yxraising to power SDone variable statistics: calculating mean and standard deviation nCrprobability calculations P-Rconverting coordinates between rectangular and polar systems n!factorial |
| Display: | 10+2+2 digit LCD |
| Power: | 2×LR44 button cell |

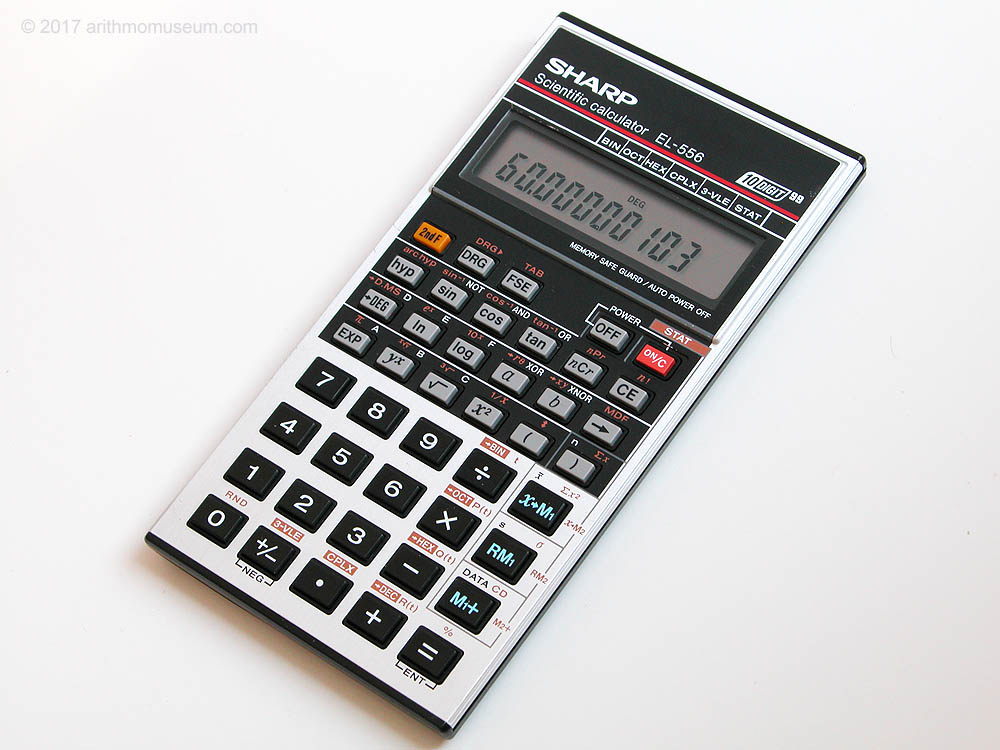

Second version of EL-556

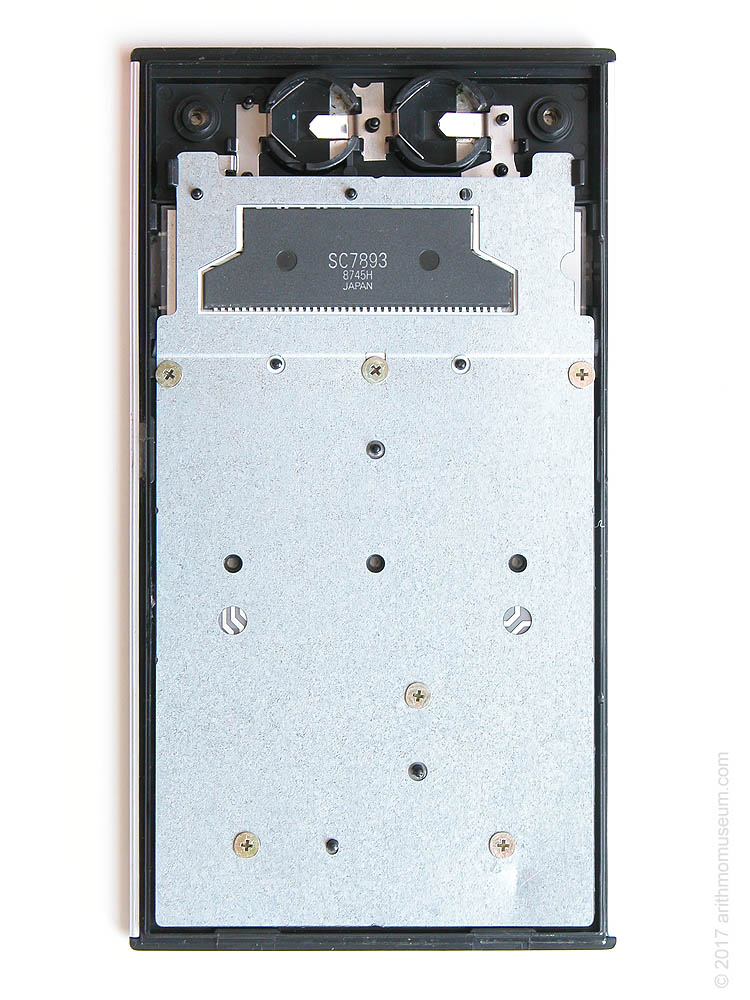

Inside of the EL-556 (version 2)
